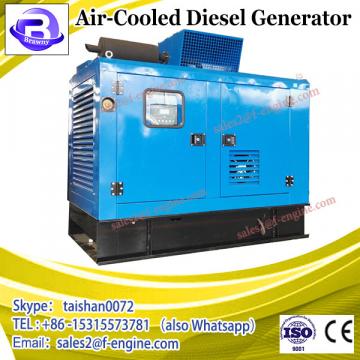

20kw Diesel Power Generator Prices With Cummins Engine
- air-cooled diesel generator
air-cooled diesel generator
- China
- One set 20kw Diesel Power Generator Prices With Cummins Engine
- [email protected]
- Within 5 working days
- paypal,UnionPay, Visa/MasterCard, Amex, Discover,T/T
- 162
-
Shandong Brawny Industrial Co.,Ltd2020-07-10 09:46:19
Welcome to my shop! Glad to serve you! Please send your question!
Product Description
| 20kw Diesel Power Generator Prices With Cummins Engine | |||||||||
| 1. Specification of genset | |||||||||
| Gensets model | TPD25C6-2 | ||||||||
| Prime power | 20KW/25KVA | ||||||||
| Rated Voltage(V) | 400/230 | ||||||||
| Rated frequency(HZ) | 60 | ||||||||
| Rated Speed(RPM) | 1500 | ||||||||
| Power Factor | 0.8(lagging) | ||||||||
| Dimensions(mm) (L×W×H) | 1680x730x1285 | Open type | |||||||
| Genset Weight(kg) | 650 | ||||||||
| Dimensions(mm) (L×W×H) | 2200x940x1460 | Silent type | |||||||
| Genset Weight(kg) | 1070 | ||||||||
| 2. Specification of diesel engine | |||||||||
| Engine model | 4B3.9-G2 | ||||||||
| Output power | 30kW/37.5kVA | ||||||||
| Number of Cylinders | 4 | ||||||||
| Cylinder arrangement | V-type | ||||||||
| Cycle | Four stroke | ||||||||
| Aspiration | Air natural cooled | ||||||||
| Bore×Stroke (mm×mm) | 102x 120 | ||||||||
| Displacement (Liter) | 3.9 | ||||||||
| Compression Ratio | 16.5:1 | ||||||||
| Speed Governor | Mechanical | ||||||||
| Cooling System | Forced Water Cooling Cycle | ||||||||
| Total lubrication system capacity (L) | 11 | ||||||||
| Fuel Consumption at 100% Load (g/kw.h) | 228 | ||||||||
| Starting Method | DC24V electrical starting | ||||||||
| 3. Specification of alternator | |||||||||
| Alternator brand | Stamford | ||||||||
| Alternator model | PI 144E | ||||||||
| Rated power | 20KW/25KVA | ||||||||
| Number of Phase | 3 | ||||||||
| Connecting Type | 3 Phase and 4 Wires | ||||||||
| Number of Bearing | 1 | ||||||||
| Protection Grade | IP23 | ||||||||
| Altitude | ≤1000m | ||||||||
| Exciter Type | Brushless ,Self-exciting, AVR automatic voltage regulating,100% Copper winding wire | ||||||||
| Insulation Class | H | ||||||||
| Telephone Inf20kw Diesel Power Generator Prices With Cummins Enginece Factor (TIF) | ≤50 | ||||||||
| THF | ≤2% | ||||||||
| Voltage Regulation, Steady State | ≤±1% | ||||||||
| Transient State Voltage | ≤-15%~+20% | ||||||||
The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our 20kw Diesel Power Generator Prices With Cummins Engine adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, 20kw Diesel Power Generator Prices With Cummins Engine also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
