Product Description

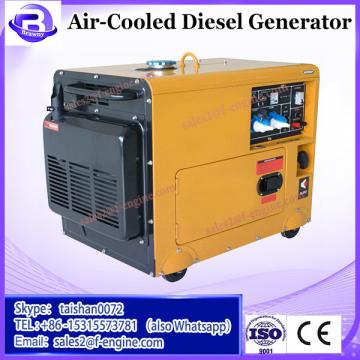

3kw 5kw 6kw silent small air cool portable diesel generator
hot sale product
Product Description
| RATED FREQUENCY(HZ) | 50 | 60 |
| RATED VOLTAGE(V) | 220,230,240,110/220,115/230,120/240 | |
| RATED OUTPUT POWER(KW) | 2.6 | 3 |
| MAX. OUTPUT POWER(KW) | 3 | 3.3 |
| RATED ROTATION SPEED(RPM) | 3000 | 3600 |
| POWER FACTOR COSΦ | 1 | |
| PHASE NUMBER | SINGLE | |
| POLE NUMBER | 2 | |
| EXCITATION TRANSISTORIZED | SELF-EXCITATION CONSTACT VOLTAGE(AVR) | |
| ATS TYPE | WITHOUT ATS,OPTIONAL | |
| STRUCTURE TYPE | OPEN-FRAME | |
| FUEL CONSUMPTION(G/KW.H) | 370 | |
| FUEL TANK CAPACITY(L) | 12.5 | |
| CONTINUOUS RUNNING TIME(HR)(AT RATED POWER) | 14 | |
| NOISE LEVEL(dBA@7m)(zero load~full load) | 72-77 | |
| NET WEIGHT(KG) | 70 | |
| OVERALL DIMENSION(mm)(L*W*H) | 705*460*535 | |
| STARTING SYSTEM | ELECTRIC START | |
| FUEL TYPE | 0#(SUMMER),-10#(WINTER),-35#(CHILL COLD) DIESEL OIL | |
| LUBE | SAE10W30(ABOVE CC GRADE) | |
| ENGINE TYPE | SINGLE-CYLINDER,4-STROKE,AIR-COOLED,VERTICAL,DIESEL ENGINE | |
| BORE*STROKE(mm) | 78*62 | |
| DISPLACEMENT(ml3) | 296 | |
| COMPRESSION RATIO | 20:1 | |
| RATED POWER(KW/RPM) | 3.7/3000 | 4.0/3600 |
| ROTATION DIRECTION(VIEW FROM THE FLYWHEEL) | CLOCKWISE | |
Packaging & ShippingPackaging: The packaging of diesel generator 3kw open type single phase electric machine is plywood case.
Shipping: about 7 work day upon receive the payment
Pictures FYI
Contact us
3kw 5kw 6kw silent small air cool portable diesel generator Co., Ltd
No.18 Hailing Industry Park, Taizhou City, Jiangsu Province, China
www.sutech.co
www.dieselgenerator-set.com
Mobile: 15161006661
Tel: 523-86282985
Skype: stmeco
The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our 3kw 5kw 6kw silent small air cool portable diesel generator adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, 3kw 5kw 6kw silent small air cool portable diesel generator also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
JSHFDKJ
