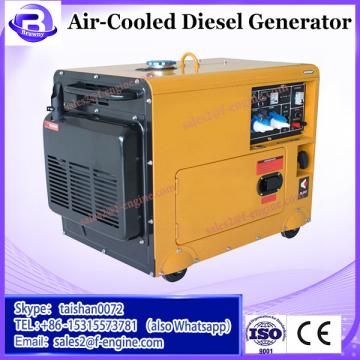

Best Seller!!!POWER-GEN air-cooled 5kw Portable Diesel Welder Generator

Product Description

The diesel welder generator 5KW @50Hz, 5.5KW@60Hz model BDGW7500E is a dual-function generator set. Ideal for welding stick 2-4mm, it is among our best selling models.

Specifications

SPECIFICATIONS OF DIESEL WELDER GENERATOR 5KW
MODEL NO.:		BDGW7500E
Frequency	Hz	50	60
Voltage	V	110/220/230//240	110/115/120/240
Alternator type		Single phase, 2-pole, Self-excited, Brush with AVR, Insulation class F
Rated Output	KW	5.0	5.5
Max. Output	KW	5.5	6.0
Welder current	Amp	50-180
Rated welder current	Amp	160
Welder voltage		Running: 26V, Without load: 55-65V
Welding Stick	mm	2-4
Control Panel		Key starter, Volt meter, Current adjusting Switch, Gen-Welder Switch
Engine Type		Diesel, Air-cooled, Single cylinder, 4-stroke, 418cc
Engine Model		BD186FAE
Engine Power	HP	10
Bore x Stroke	mm	86 x 72
Engine Speed	RPM	3000	3600
Fuel Tank Capacity	L	15
Fuel Consumption	L/Hr.	1.90 @ full load	2.20@ full load
Cranking Battery		Sealed Maintenance-free Lead acid Battery 12V 30AH
Noise Level @7M	dBA	70
Dimensions	LxWxH	720 x 480 x 580
N.W./ G.W	Kgs	102/105

Features

Control Panel

(Socket type can be made as per requirements)

- Electric/Key Starter

- Welder current adjusting switch

- Gen-Welder Best Seller!!!POWER-GEN air-cooled 5kw Portable Diesel Welder Generatore over switch
- Voltage Meter, Working hours meter
- Circuit Breaker

- Socket: 2x220V , 120/240V
- DC output: DC12V 8.3A

Diesel Engine with Battery

Engine Model: BD186FAE

Brand: POWERGEN

Power: 10HP

Type: Air-cooled, Single Cylinder, 4-stroke, 418cc

Start method: Electric start or Recoil Start

Battery: 12V30AH

Battery charger: equipped inside the generator

Full Copper Durable Alternator

Model: PG-6
Brand: POWERGEN
Power: 6KW

Type: Brush, with AVR, Self-excited

Full 100% copper coil, robust alternator can withstand a long time of coninuous working.

Recoil Starter

- Easy to pull and start

- Start the generaor by recoil starter while battery is failed

- Use the recoil star option while electric starter is not available.

Welder Output Connector

- Easy to conect with the welding gun

- Easy to get lose and fastened

- Terminal of super robust material

Foldable Handles & Wheels

- Foldable handles for easier carrying and moving.

- The wheels are durable and made to withstand a variety of conditions that generators endure, such as bumping road etc.

Control PanelTestingPackaging

Packaging
Size (mm)	740 (L) * 510 (W) * 650 (H)
Gross Weight (Kgs)	105
Packaging Details	1) Inner Packaging: Polybag 2) Outer Packaging: Thick Carton with small wooden pallet at the bottom. 3) Wrapping tape

Assembly LineCertifications

The air-cooled diesel generator can have optional wheels and hand kits, Electric start or manual starting.Small-sized diesel generator sets includes open type and silent type.Our Best Seller!!!POWER-GEN air-cooled 5kw Portable Diesel Welder Generator adopt different diesel engines and brushless generators.Generally adopt 1-cylinder&4-stroke&air-cooled engine, low fuel consumption, high reliability;It is easy to maintain as adopting brushless A.C.Generator and CDI ignition system.
JHSBJDHV
air-cooled diesel generator are quick-starting, stable-running, little vibration, low noise, light weight, small volume, compact structure, suitable for areas on mining, factory, working on field, engaging in construction and army as movable power or electric power in ship, Best Seller!!!POWER-GEN air-cooled 5kw Portable Diesel Welder Generator also suitable for areas on animal husbandry, fishery, forest, orchard, guesthouse and business as standby power.
